H SERIES

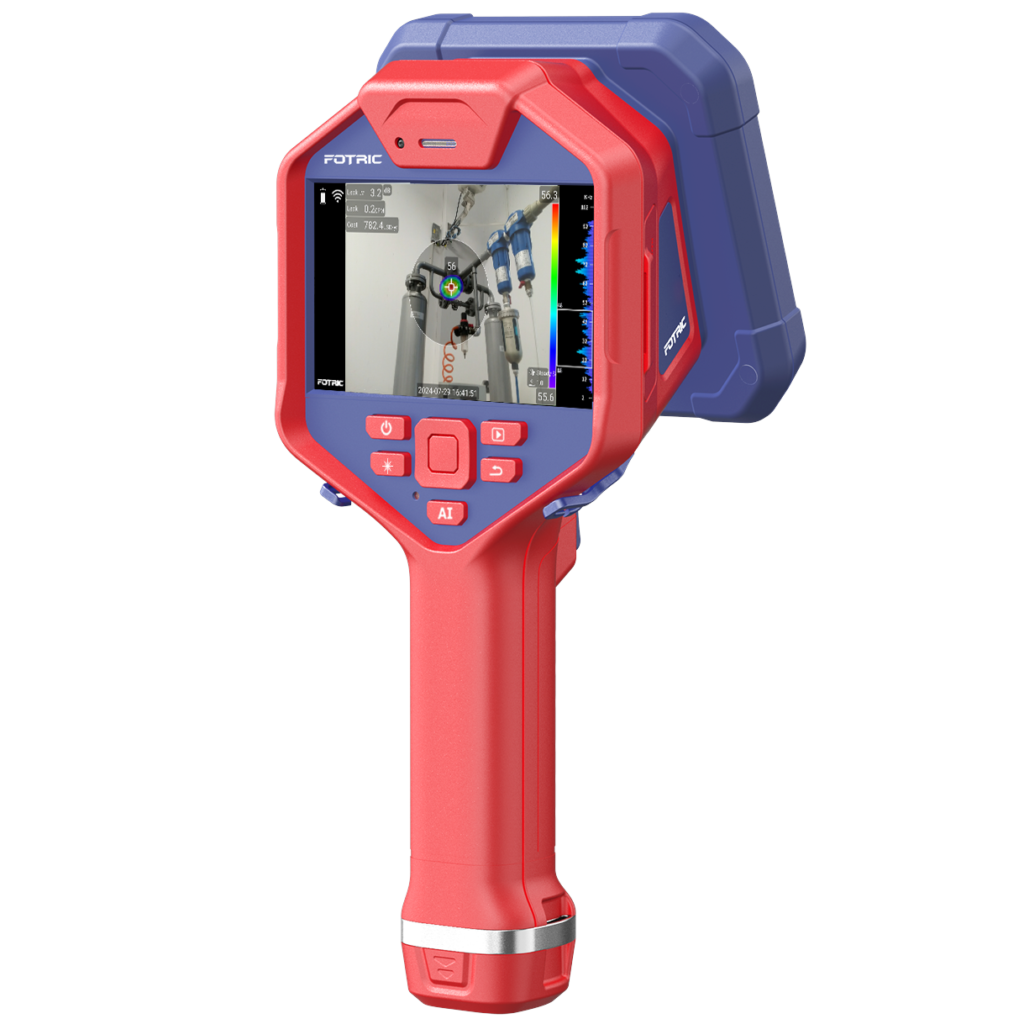

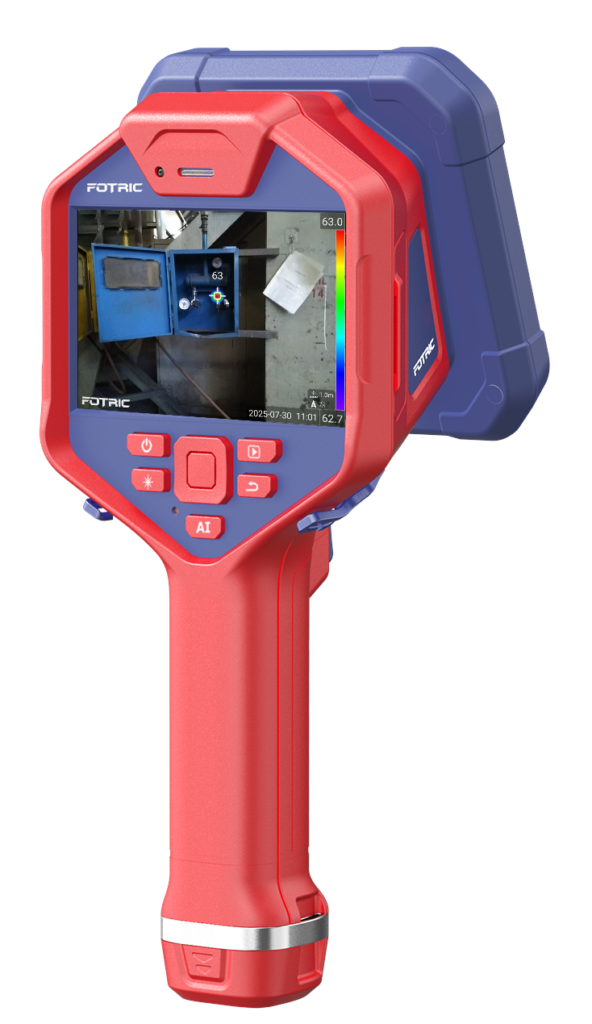

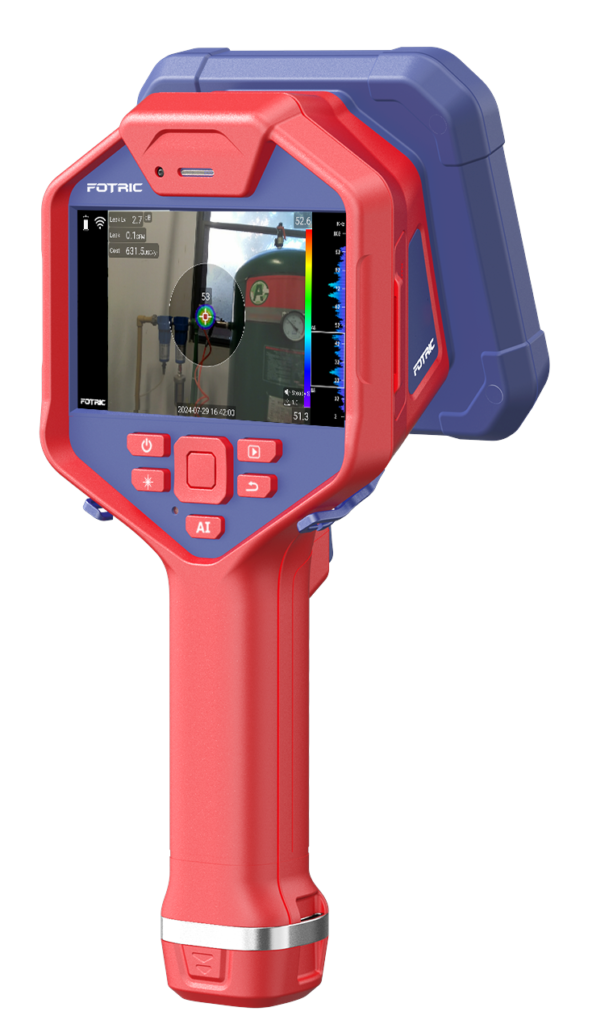

H-Series – Handheld Acoustic Imaging Camera

The FOTRIC H-Series is is a dedicated acoustic imaging camera built for reliability and electrical professionals who require fast, accurate detection of gas leaks, partial discharge, and airborne ultrasonic faults across industrial, utility, and electrical environments.

Available in four models to match different detection range and sensitivity requirements..

H4 Mini — 64 MEMS microphones · compact
H4 — 112 MEMS microphones · standard
H6 — 162 MEMS microphones · professional
H7 — 345 MEMS microphones · high-sensitivity

ACOUSTIC DETECTION

  • Microphones: 112/162/345 MEMS

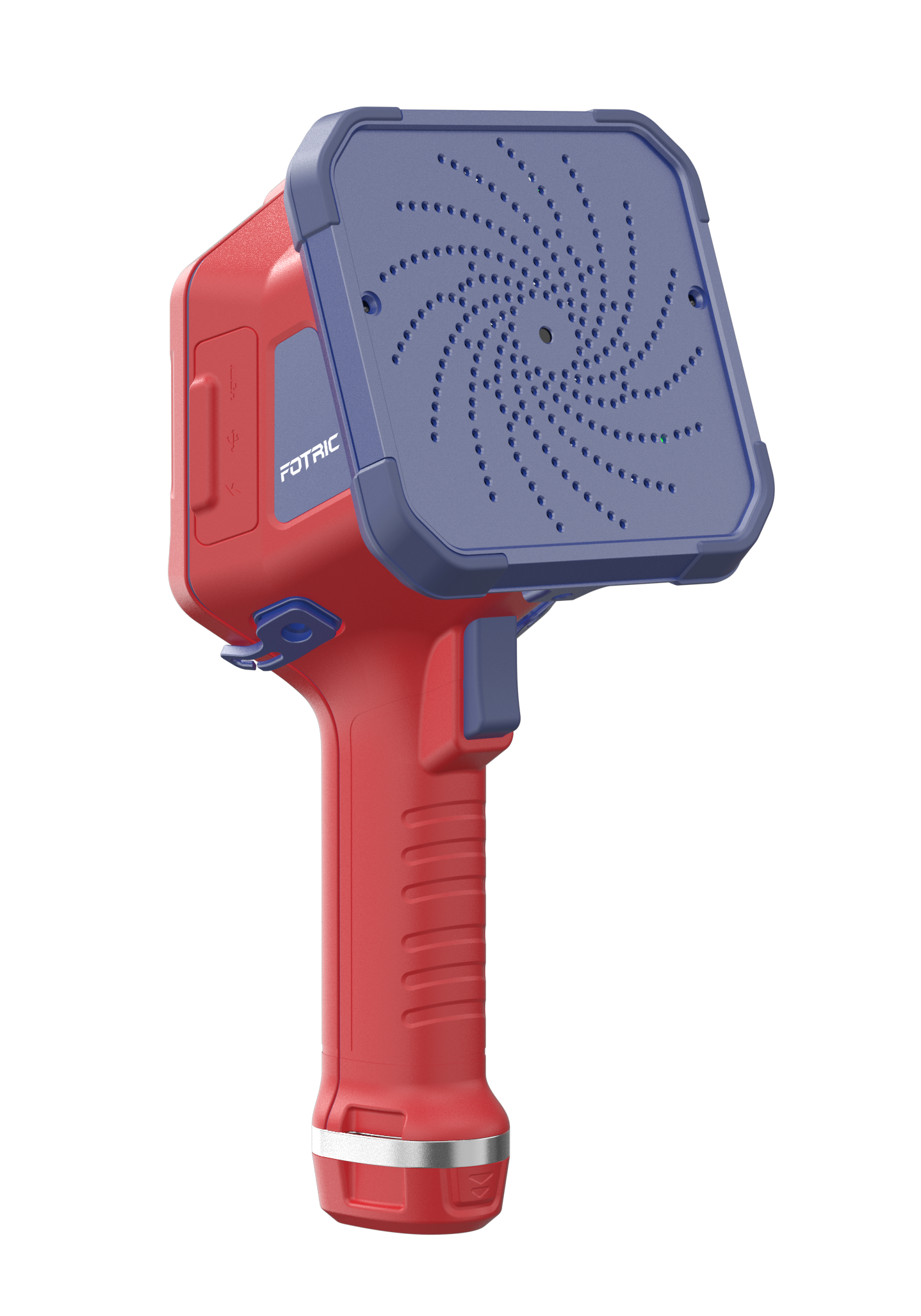

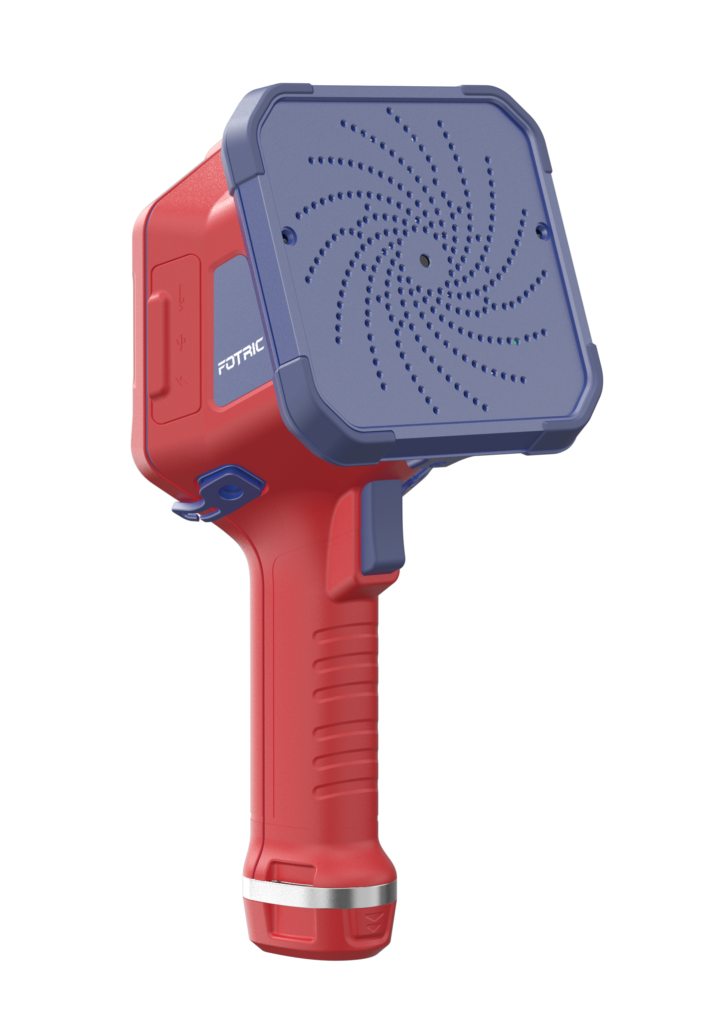

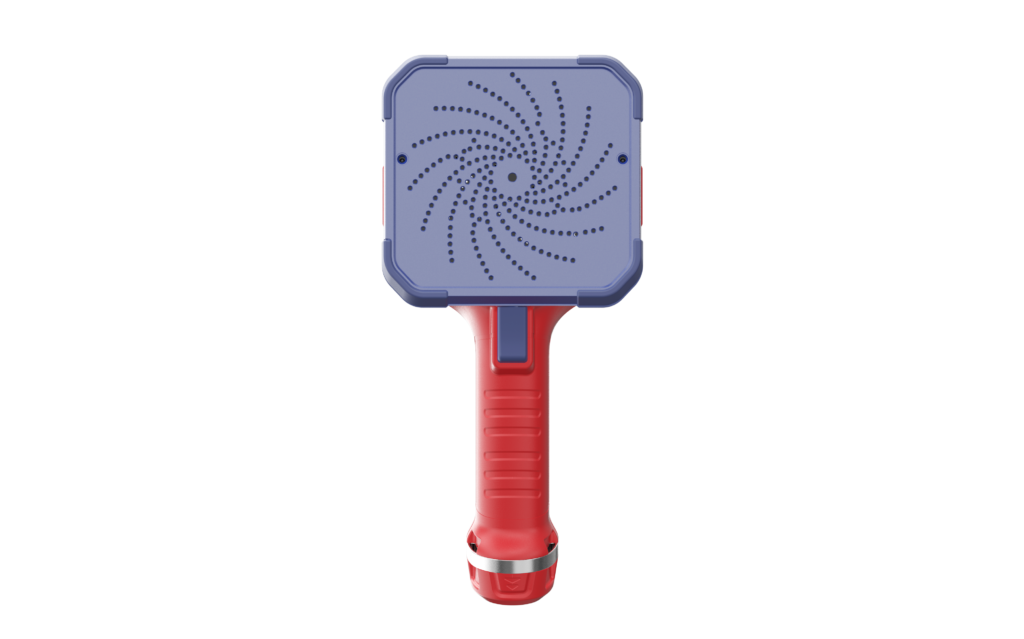

  • Array Type: 6.6” spiral array
  • Acoustic FOV: 66×52
  • Working range: 0.3-200m
  • Frequency range: 2-100 kHz
  • Display: 5’ 1280×720 Touchscreen
  • Digital camera: 13MP

ANALYSIS

  • Loss Evaluation: Estimate Leak Rate and Operation Cost
  • Frequency rate: Focus on the real issue, cut though background noise
  • PD Diagnosis: Corona, surface, floating

NaviPdM® — Asset Management & Reporting Software

The P-Mix Series supports NaviPdM® — FOTRIC’s AI-powered inspection platform — turning the camera into a complete asset management and reporting system, not just a data-capture device.

Hardware Built for Field Work

Build & durability

  • Display: 5″ IPS 1280×720 touchscreen
  • Camera: 13MP industrial digital
  • Lighting: Double high-illumination LED
  • Enclosure: IP54 rated
  • Wireless: Wi-Fi, Bluetooth, USB-C, HDMI
  • Wired: USB-C, HDMI, FTP
  • Annotation: Voice, text, image tags
  • Asset ID: QR code + barcode scanner

APPLICATIONS

The H6 is suited to a wide range of industrial inspection tasks where airborne ultrasonic detection can improve fault finding, verification, and diagnosis. It is particularly useful across gas leak detection, partial discharge inspection, compressed air surveys, and broader plant reliability work.

Gas leak detection
Compressed air and industrial leak surveys
Partial discharge inspection
Utility and electrical asset inspection
Airborne ultrasonic fault detection
General acoustic inspection work
