V SERIES

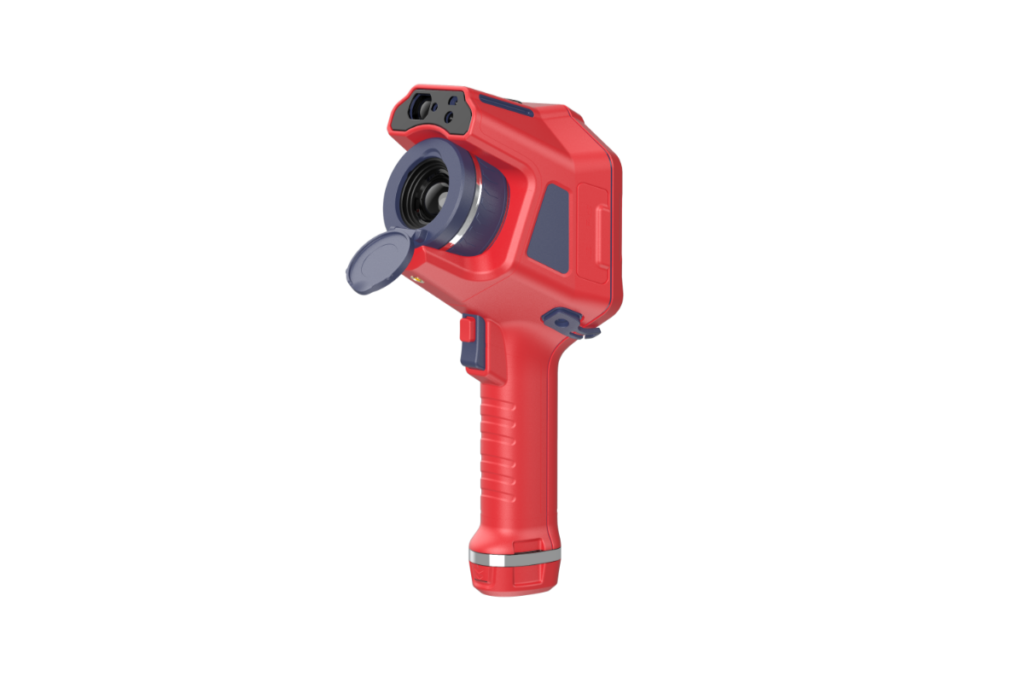

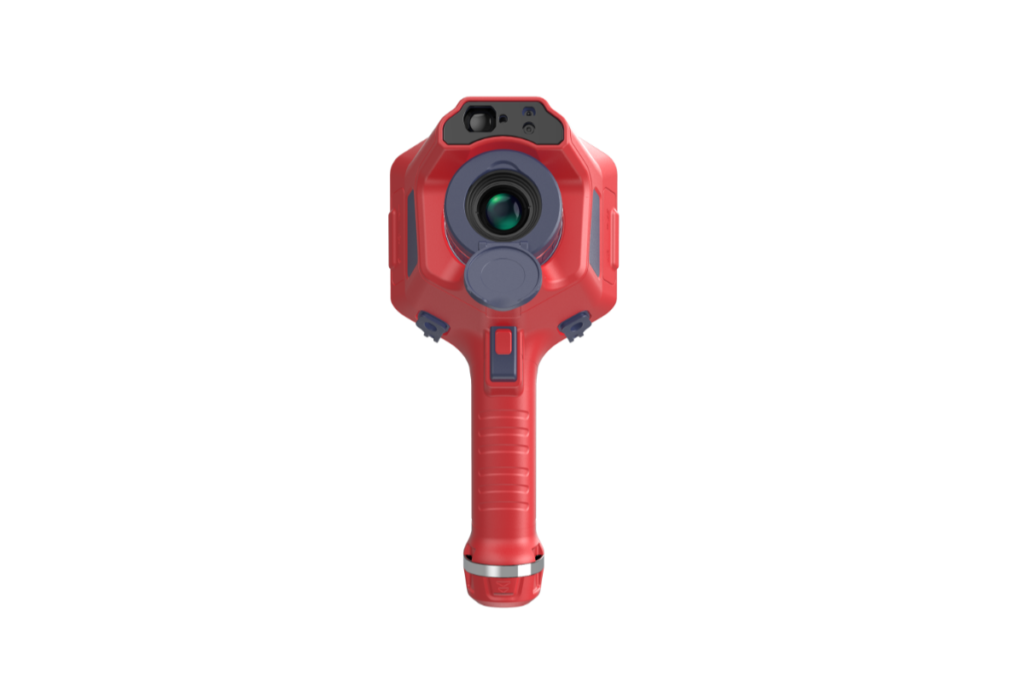

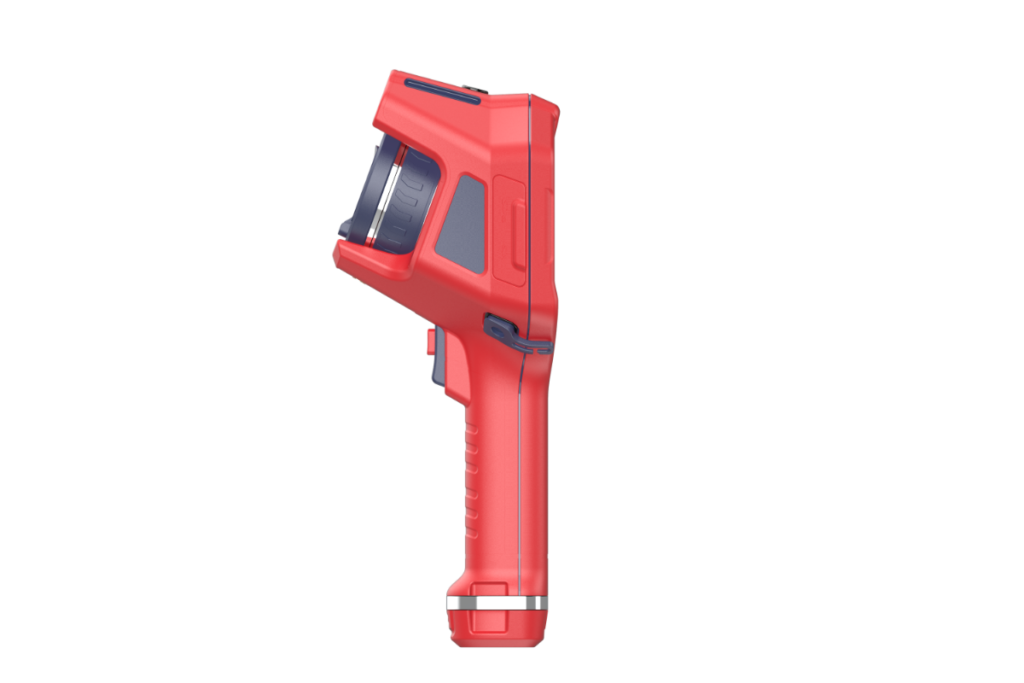

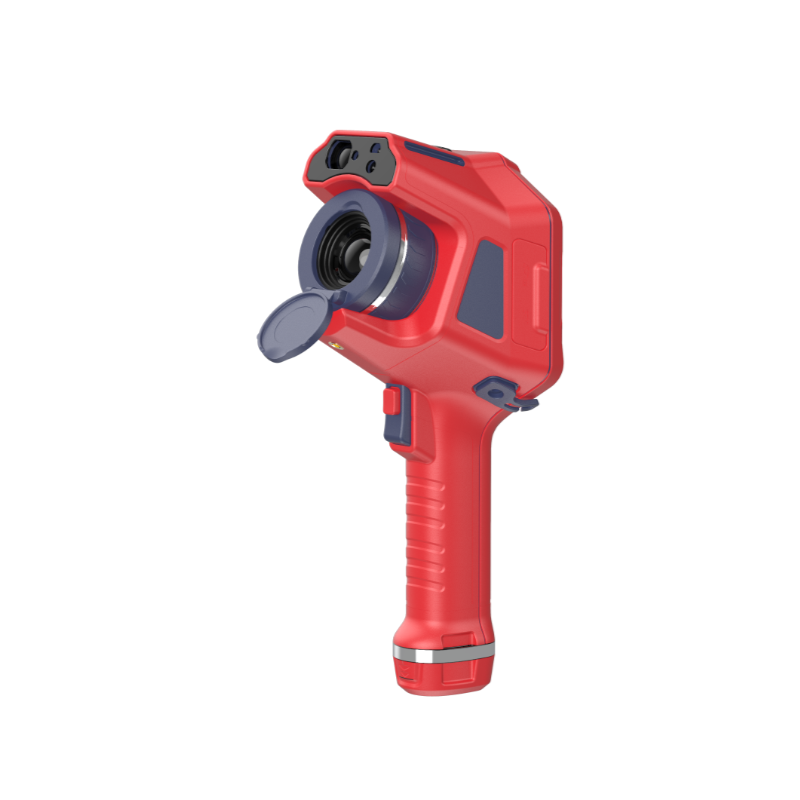

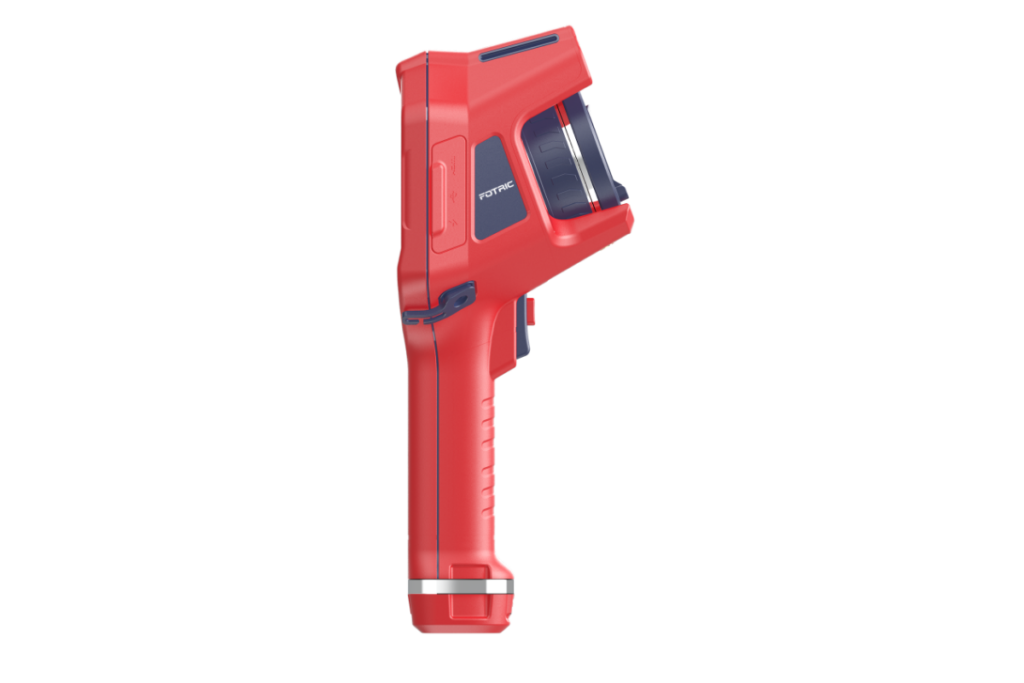

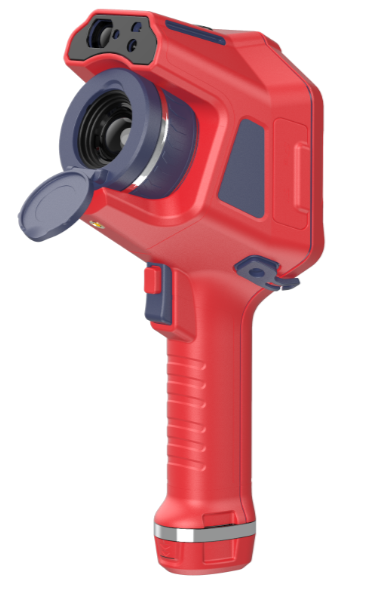

V Series – Handheld Thermal Imaging Camera

The FOTRIC V Series is a premium handheld thermal camera built for site inspectors and reliability professionals who require accurate thermal data and efficient on-site documentation across electrical, mechanical, and general industrial applications.

Available in V7 and V5 models to match different performance and budget requirements.

IMAGING

IR resolution: Up to 640×480 px
Thermal sensitivity (NETD): <30mK
Frame rate: 30Hz
Display: 5″ IPS TouchScreen 1280×720 Resolution
Imaging Algorithms: Super Resolution, T-TWB, MagicThermal

MEASUREMENT

Measurement accuracy: ±2°C or ±5%
Temperature range: −20 to 1550°C
Focus Mode: TurboTouch Focus® , Auto-Laser Focus, Continous Focus
On-device measurement: 30 spots, 30 ROIs, 30 lines
Digital camera: 13MP

NaviPdM® — Asset Management & Reporting Software

The V-Series integrates with NaviPdM® — FOTRIC’s AI-powered inspection platform — turning the camera into a complete asset management and reporting system, not just a data-capture device.

Hardware Built for Field Work

Build & durability

Display: 5″ IPS LCD 1280×720 — Gorilla Glass scratch-resistant
Battery: 3 × 4hr batteries = up to 12 hrs total operation
Enclosure: IP54 — dust and splash protected; 2-meter drop tested
Connectivity: Wi-Fi, Bluetooth, USB-C, HDMI
Storage: SD card up to 2TB

APPLICATIONS

The FOTRIC V Series is well suited to a broad range of industrial inspection work where portability, speed, and dependable thermal imaging performance are important. It is a strong fit for electrical inspections, mechanical condition monitoring, utility work, and general plant reliability tasks.

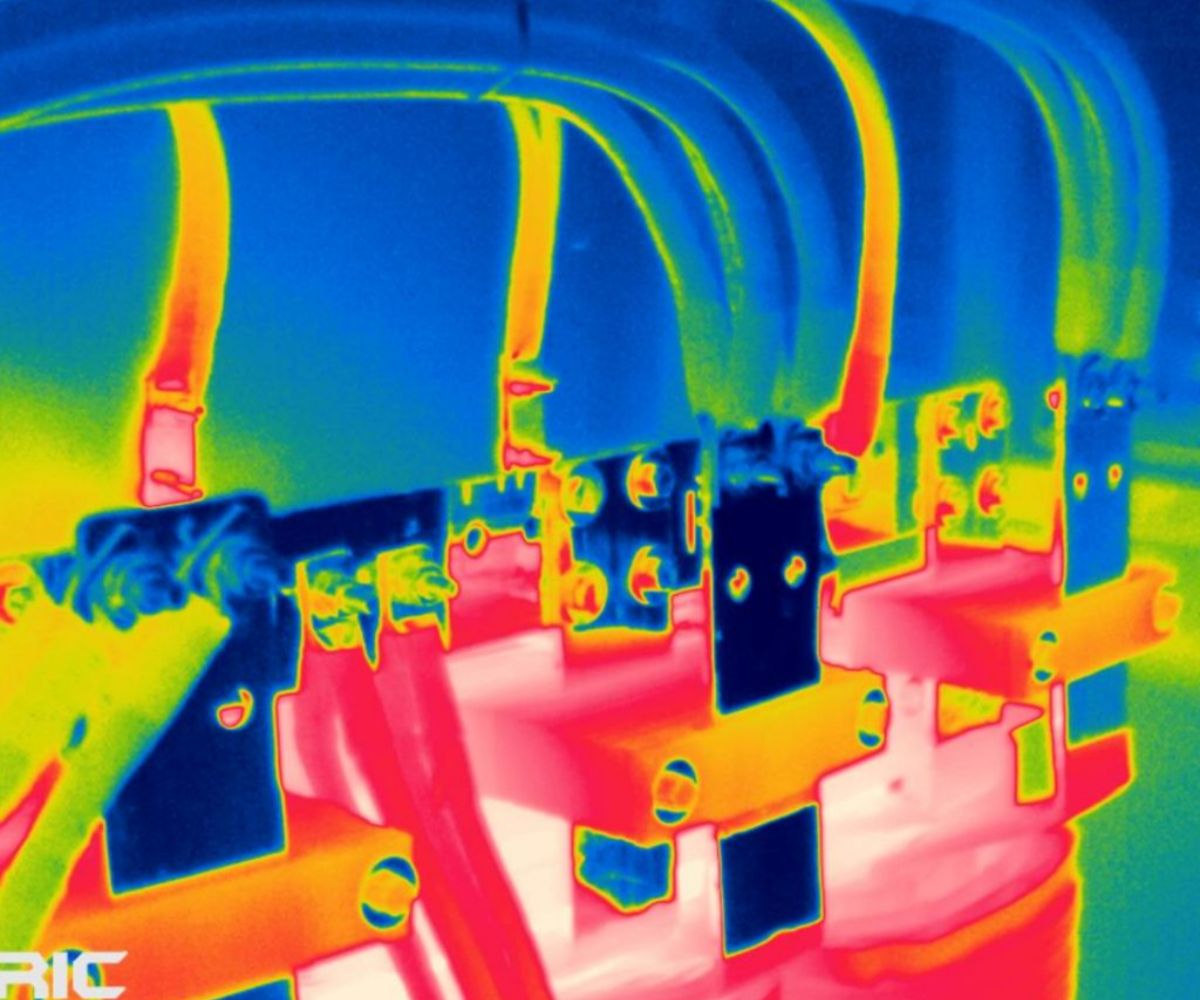

Electrical

Switchboards and panels
Motor control centres
Transformers
Substations
Electrical connections

Mechanical

Bearings
Motors
Pumps
Conveyors
Gearboxes
